TP-LINK (VIGI NVR2016H) 16 Channel Network Video Recorder, 16-Channel Live View, 4K HDMI Output, 2x SATA, H.265+
Price:
$883.98
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
TP-LINK (VIGI NVR2016H) 16 Channel Network Video Recorder, 16-Channel Live View, 4K HDMI Output, 2x SATA, H.265+
VIGI 16 Channel Network Video Recorder
- 16-Channel Live View and 4K HDMI Video Output
- Up to 10-ch @ 1080P (25fps) Decoding Capability
- 16-Channel Synchronous Playback
- 160 Mbps Incoming and Outgoing Bandwidth
- 2x SATA Interfaces and 1 Up to 16 TB
- H.265+ Compression Technology
- Alarm In/Out: 6/4
- HDMI and VGA Independent Output
- Remote Monitoring
- One-Click System Initialize - VIGI NVRs enable quick camera additions, HDD initialization, and storage scheduling with a single click, reducing setup expenses.
Specifications:
- Warranty : 5 Years
- Record Management : Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback Backup Mode: Regular Backup, Video Clip Backup Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
- PoE : -
- Incoming/Outgoing Bandwidth : Incoming Bandwidth: 160 Mbps Outgoing Bandwidth: 160 Mbps
- HDD : 2 SATA Interfaces Capacity Up to 16 TB Capacity for Each HDD *Hard drives (not included) must be installed for operation.
- Decoding : Audio Compression: G.711A/G.711U/G.726 Video Compression: H.265+/H.265/H.264+/H.264 Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback: 16-Channel Capability: 25fps: 10-ch@1080P 30fps: 2-ch@8MPl, 4-ch@5MP, 5-ch@4MP, 6-ch@3MP
- Power Supply : 12V DC/3.3A
- Package Contents : VIGI Network Video Recorder Power Adapter HDD Power Cable HDD Data Cables Mounting Accessories Mouse Quick Installation Guide
- Video Input/Output : IP Video Input: 16-Channel HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz Video Output Mode: HDMI/VGA Independent Output
- Access Camera Number : 16
- Network : Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP Mobile Phone Access: Android, iOS Web Browser: Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) Interoperability: ONVIF Profile S, CGI
- Alarm : General Alarm: Motion, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering, Object Abandoned/Removal, Vehicle, Human, Abnormal Sound, Smart Frame Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm

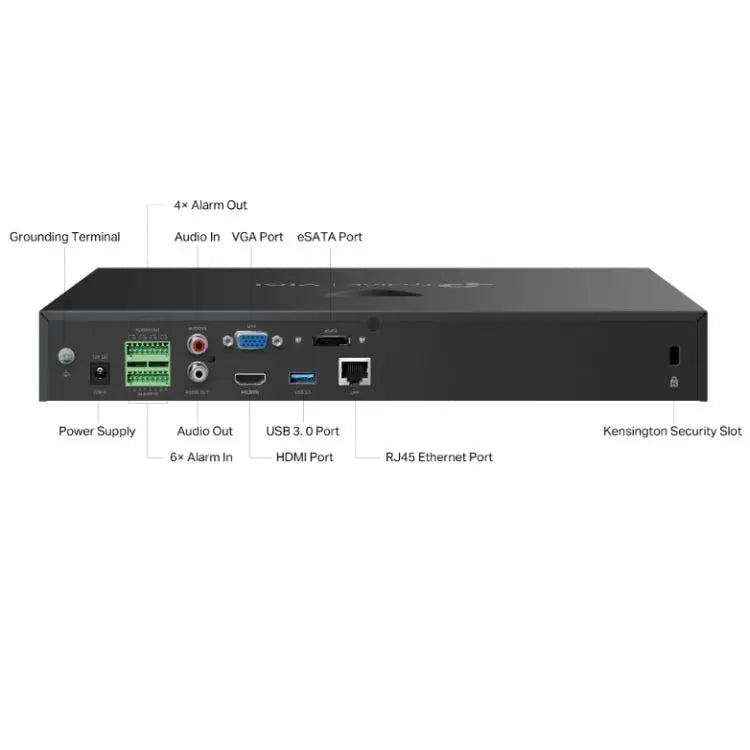

- Interface(s) : Network: 1 x RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet USB: 1 x Front USB 2.0 Port, 1 x Rear USB 3.0 Port Audio: 1-ch RCA Input; 1-ch RCA Output Alarm In/Out: 6/4 Power: 1 x DC Jack 1 x eSATA 1 x HDMI 1 x VGA
- Weight/Dimensions : 2 kg 330 x 285 x 45 mm
- Environment : Storage Temperature: -40–70 °C Storage Humidity: 10%~90% RH Non-Condensing Working Temperature: NVR: -10–55 °C / Power Adapter: 0–40 °C Working Humidity: 10%~90% RH Non-Condensing
- Additional Features : See Overview
- Power Consumption : 7.475 W (Without Disk) 28.635 W (With Disk)
- Package Weight : 3.0000 kg
