TP-LINK (SM6110-LR) Omada 25GBase-LR SFP28 Single-Mode SFP+/SFP28 LC Transceiver, Hot-Pluggable, DDM Support, 1310 nm
Price:
$248.15
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description

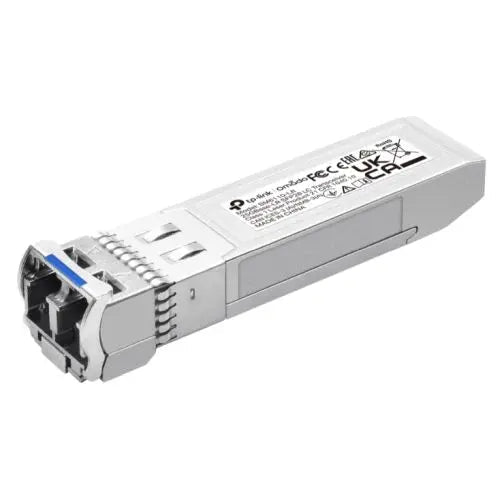

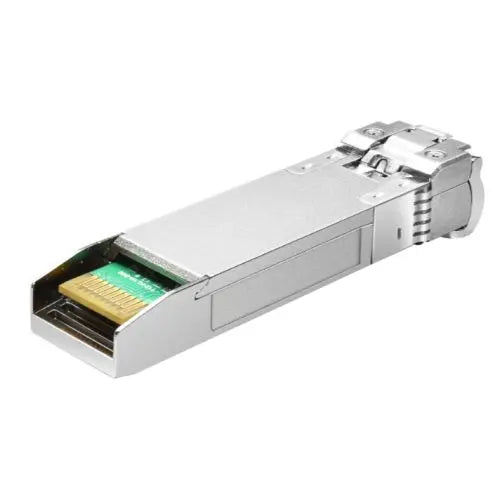

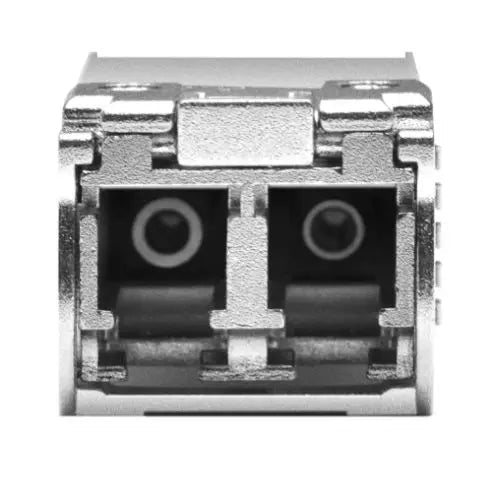

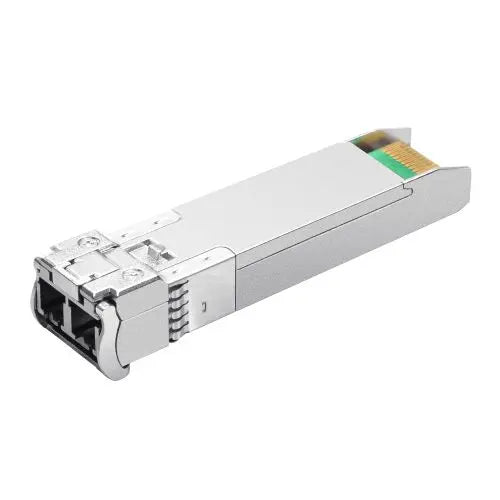

TP-LINK (SM6110-LR) Omada 25GBase-LR SFP28 Single-Mode SFP+/SFP28 LC Transceiver, Hot-Pluggable, DDM Support, 1310 nm
Omada 25GBase-LR SFP28 LC Transceiver
- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
What This Product Does
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Specifications:
- Cable : Single-mode Fiber
- Warranty : 2 Years
- Wave Length : 1310 nm
- Device Type : SFP+ LC Transceiver
- Standards and Protocols : IEEE 802.3ae, 802.3cc SFF-8402, SFF-8431, SFF-8432, SFF-8472 eCPRI, CPRI TCP/IP
- Fiber Type : 9/125um Single-Mode
- Diagnostic Function : Supports Digital Diagnostic Monitoring (DDM)
- Power Supply : 3.3V
- Package Type : Retail
- Port Type : Duplex LC/UPC
- Package Contents : SM6110-LR Installation Guide
- Data Rate : Dual Rate 25.78 Gbps and 10.31 Gbps
- Environment : Operating Temperature: 0°C to 70°C (32°F to 158°F) Storage Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 90% RH, Non-Condensing Storage Humidity: 5% to 90% RH, Non-Condensing
- Max. Cable Length : 10 km
- Package Weight : 0.0600 kg
