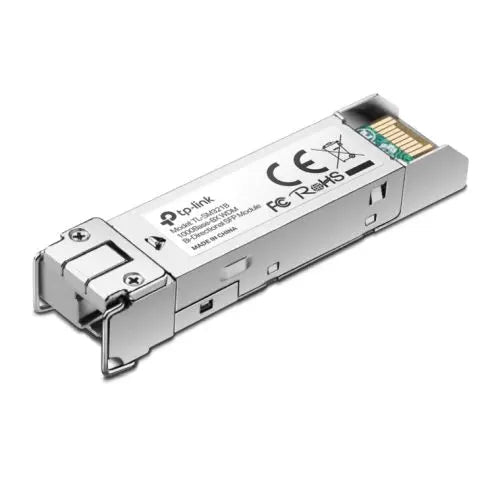

TP-LINK (SM321B-2) 1000Base-BX WDM Bi-Directional SFP Module, Up to 2km, DDM, Hot Swappable
Price:
$49.66
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
TP-LINK (SM321B-2) 1000Base-BX WDM Bi-Directional SFP Module, Up to 2km, DDM, Hot Swappable
1000Base-BX WDM Bi-Directional SFP Module
- Adopts the latest standard 1000Base-BX
- Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Supports Hot Swappable
What This Product Does
TP-LINK´s TL-SM321B-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321B-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).
Also, TL-SM321B-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.
TP-Link's TL-SM321B-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
Specifications:
- Cable : Single-mode Fiber
- Package Type : Retail
- Port Type : LC Simplex
- Warranty : 2 Years
- Data Rate : 1.25 Gbps
- Wave Length : Tx: 1310 nm Rx: 1550 nm
- Device Type : Bi-Directional SFP Module
- Environment : Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing
- Standards and Protocols : IEEE 802.3z, TCP/IP
- Fiber Type : 9/125 um Single-Mode
- Package Weight : 0.0610 kg
- Power Supply : 3.3V
