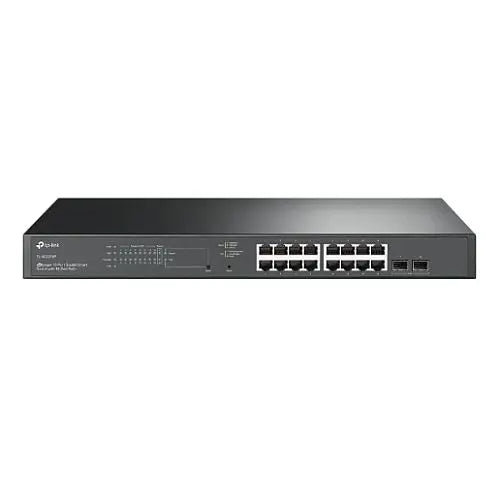

TP-LINK (SG2218P) JetStream 18-Port Gigabit Smart Switch w/ 16-Port PoE+, 2x SFP, IPv6, Centralised Management

TP-LINK (SG2218P) JetStream 18-Port Gigabit Smart Switch w/ 16-Port PoE+, 2x SFP, IPv6, Centralised Management

JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+

• 150 W PoE Budget: 16x 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
• Full Gigabit Ports: 16x gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.



Specifications:
- VLAN : VLAN Group 802.1Q tag VLAN MAC VLAN: 12 Entries Protocol VLAN GVRP Voice VLAN
- #Hide#POE : Yes
- Security : AAA 802.1X IP/IPv6-MAC Binding IP Source Guard IPv6 Source Guard DoS Defend Static/Dynamic/Permanent Port Security Broadcast/Multicast/Unicast Storm Control Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface management with SSHv1/SSHv2 IP/Port/MAC based access control
- Power Supply : 100-240V AC, 50/60Hz
- Package Contents : TL-SG2218P Power Cord Installation Guide Rackmount Kit Rubber Feet
- Number of Ports : 18
- Layer Features : L2 and L2+: 16 IP Interfaces Static Routing DHCP Server DHCP Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED
- Interface(s) : 16 x 10/100/1000 Mbps RJ45 (Auto Negotiation/Auto MDI/MDIX) 2 x Gigabit SFP
- Packet Forwarding Rate : 26.78 Mpps
- Access Control : Support up to 230 entries Time-Range Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation Policy Action ACL Rules Binding Actions for flows
- Jumbo Frame : 9 KB
- Switching Capacity : 36 Gbps
- Warranty : Limited Lifetime
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : PoE+ Ports: 16 Ports PoE Power Budget: 150 W
- Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
- Management : Require Omada Controllers: Omada App Centralized Management Cloud Access Zero-Touch Provisioning Management Features: Management Features Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log
- #Hide#Max SFP Transfer Rate : GB SFP
- Mac Address Table : 8K
- Quality of Service : 802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode Queue Weight Config Bandwidth Control Smoother Performance Storm Control
- Package Type : Retail
- Rackmountable : Yes
- Additional Features : Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule
- Environment : Operating Temperature: 0–50°C (32–122°F) Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 3.2000 kg
- Managed : Smart
