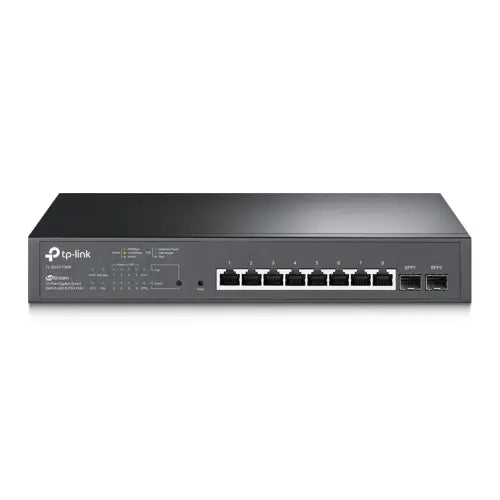

TP-LINK (SG2210MP) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 GB SFP Slots, Rackmountable
Price:
$570.76
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
TP-LINK (SG2210MP) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 GB SFP Slots, Rackmountable
JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
- 150 W PoE Budget: 8 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
- Full Gigabit Ports: 8 gigabit PoE+ ports and 2 gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
Specifications:
- VLAN : VLAN Group 802.1Q tag VLAN MAC VLAN Protocol VLAN GVRP Voice VLAN
- #Hide#POE : Yes
- Security : AAA 802.1X IP/IPv6-MAC Binding IP Source Gurad IPv6 Source Gurad DoS Defend Static/Dynamic/Permanent Port Security Broadcast/Multicast/Unicast Storm Control Port Isolation Secure web management through HTTPS with SSLv3/TLS1.2 Secure Command Line Interface management with SSHv1/SSHv2 IP/Port/MAC based access control

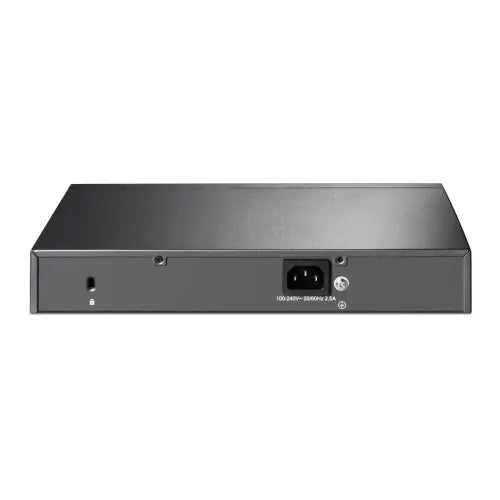

- Power Supply : PoE Max Consumption: 12.2 W (110 V / 60 Hz with no PD connected) 173.9 W (110 V / 60 Hz with 150 W PD connected)
- Package Contents : TL-SG2210MP Power Cord Installation Guide Rackmount Kit Rubber Feet
- Number of Ports : 10
- Layer Features : DHCP Relay DHCP L2 Relay Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED
- Interface(s) : 8 x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) 2 x 100/1000 Mbps SFP Slots
- Packet Forwarding Rate : 14.9 Mpps
- Access Control : Support up to 230 entries Time-Range Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation Policy Action ACL Rules Binding
- Jumbo Frame : 9 KB
- Switching Capacity : 20 Gbps
- Warranty : Limited Lifetime
- Dimensions : 294 x 180 x 44 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Standard: 802.3at/af compliant PoE+ Ports: 8 Ports Power Supply: 150 W
- Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
- Management : Omada App Centralized Management Web-based GUI and CLI management SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE System Log 802.1ab LLDP/ LLDP-MED
- #Hide#Max SFP Transfer Rate : 2.5G SFP
- Mac Address Table : 8K
- Quality of Service : 802.1p CoS/ DSCP priority 8 priority queues Priority Schedule Mode Queue Weight Config Bandwidth Control Smoother Performance Actions for flows Storm Control
- Package Type : Retail
- Rackmountable : Yes
- Additional Features : See Overview
- Environment : Operating Temperature: 0C~40C (32F~104F); Storage Temperature: -40C~70C (-40F~158F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
- Package Weight : 2.1600 kg
- Managed : Smart
