TP-LINK (ES206GP) Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+, 6x GB Ports, Metal Casing
Price:
$208.44
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
TP-LINK (ES206GP) Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+, 6x GB Ports, Metal Casing
Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+

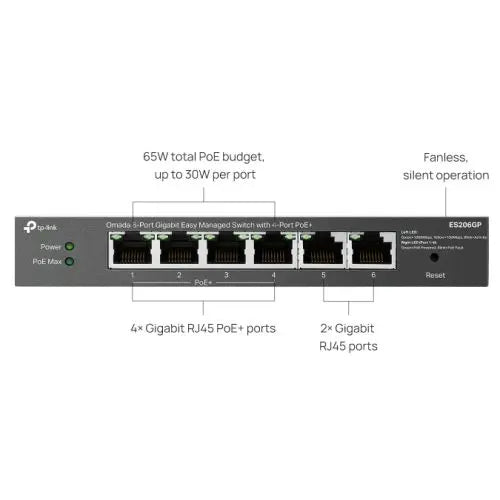

- 6x 10/100/1000Mbps RJ45 ports (4x 802.3af/at-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

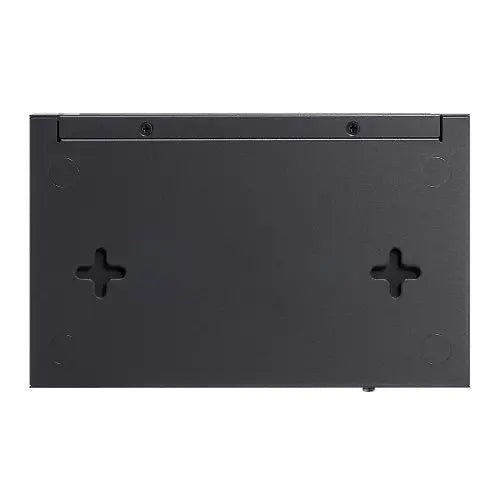

- Durable metal casing and desktop/wall mounting design
Omada Solution
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network - all controlled from a single interface.
Specifications:
- Transfer Method : Store-And-Forward
- VLAN : MTU VLAN Port-Based VLAN 802.1Q Tag VLAN
- #Hide#POE : Yes

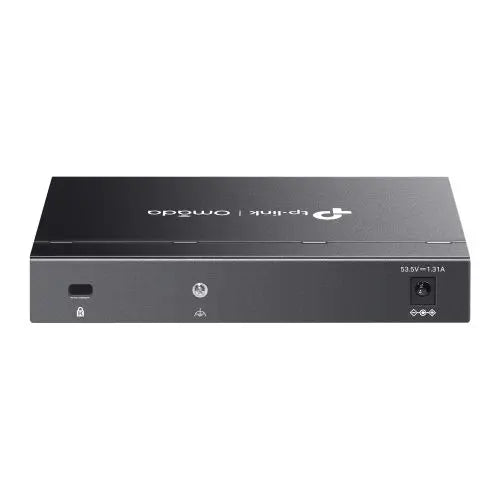

- Power Supply : DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
- Package Contents : ES206GP Power Adapter Power Cord Rubber Feet Installation Guide
- Number of Ports : 6
- Layer Features : L2 Features: Static Link Aggregation Loop Prevention / Loopback Detection Flow Control Mirroring Port Statistics 802.1ab LLDP L2 Multicast: IGMP Snooping
- Interface(s) : 6 x 10/100/1000 Mbps RJ45 Ports Ports 1-4 Support 802.3af PoE and 802.3at PoE+ Auto-Negotiation/Auto MDI/MDIX
- Packet Forwarding Rate : 7.4 Mpps
- Jumbo Frame : 15 KB
- Switching Capacity : 12 Gbps
- Warranty : Limited Lifetime
- Dimensions : 158 x 101 x 25 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Standard: 802.3af PoE and 802.3at PoE+ compliant PoE Ports: 4 ports PoE Budget: 65W available for all PoE+ ports, 30W max per port Fast PoE & Perpetual PoE PoE Auto Recovery Up to 250m PoE transmission distance
- Management : Omada App: Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management: Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Cloud Access: Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning: Requires the use of Omada Cloud-Based Controller
- Mac Address Table : 8K
- Quality of Service : Port-based/802.1p/DSCP QoS 8 Priority Queues Priority Schedule Mode Queue Weight Config Bandwidth Control Storm Control
- . : Management Features: Web-based GUI DHCP Client Cable Diagnostics Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Unified Configuration
- Package Type : Retail
- Rackmountable : No

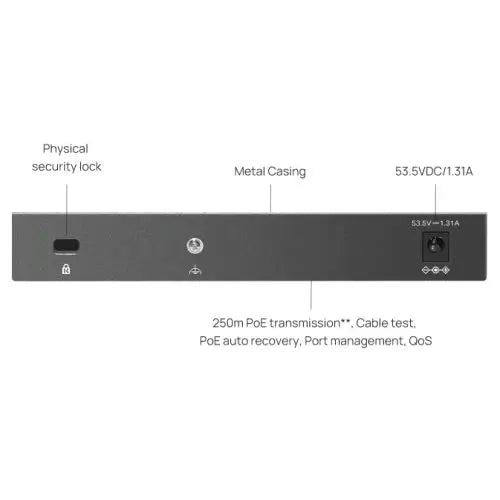

- Additional Features : Fanless Durable metal casing Desktop/wall mounting design Physical security lock
- Environment : Operating Temperature: -5°C ~40°C Storage Temperature: -40°C ~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
- Package Weight : 0.9500 kg
- Managed : Yes
