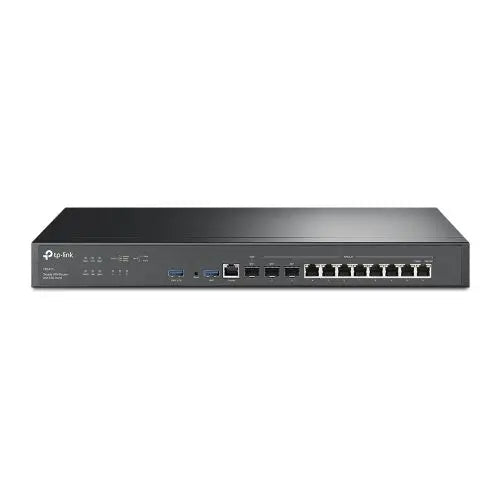

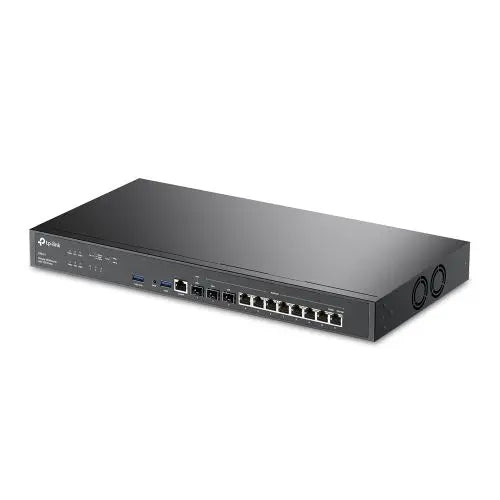

TP-LINK (ER8411) Omada VPN Router with 10G Ports, Omada SDN, 2x 10GE SFP+, Up to 10 WAN, Abundant Security Features
Price:
$1,290.43
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
TP-LINK (ER8411) Omada VPN Router with 10G Ports, Omada SDN, 2x 10GE SFP+, Up to 10 WAN, Abundant Security Features
Omada VPN Router with 10G Ports
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Two 10GE SFP+ Ports: 1x WAN and 1x WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
- Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
- Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
What This Product Does
The ER8411 Omada 10G Multi-WAN Security Gateway from TP-Link boasts excellent data processing capabilities and an array of powerful functions, including SSL/ IPSec / PPTP / L2TP VPN & OpenVPN, Load Balance, Access Control, DoS Defense, and Bandwidth Control. Two 10GE SFP+ ports and up to 10 WAN ports allow for high-bandwidth aggregation connectivity and multi-line broadband. As a router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER8411 provides for remote and centralized management anywhere, anytime.
Integration into Omada SDN for Centralized Management
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER8411 allows for remote and centralized management anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience. View network topology and configuration, real-time switch statistics, and debugging metrics from a single easy-to-use interface.
High-Capacity Performance
Featuring two 10G SFP+ ports (1 WAN, 1 WAN/LAN), the Security Gateway ER8411 supports high-bandwidth aggregation connectivity for enterprise-level businesses, schools, hotels, and large-scale deployments.
Intelligent Bandwidth Allocation
The ER8411 features 1x 10GE SFP+ WAN port, 1x 10GE SFP+ WAN/LAN port, 1x 1GE SFP WAN/LAN ports, and 8x 1GE RJ45 WAN/LAN ports, raising the utilization rate of multi-line broadband. Intelligent Load Balance distributes data streams according to the bandwidth proportion of each WAN port to make the most of multi-line broadband. IP-based Bandwidth Control and Session Limit functions give network administrators the power to manage how their bandwidth is used flexibly.
Enterprise-Standard VPN
The ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPsec, PPTP, and L2TP in Client/Server mode. It also features built-in VPN engine hardware, allowing the router to support and manage LAN-to-LAN/Client-to-LAN IPsec VPN connections. Advanced VPN features include DES/3DES/AES128/AES192/AES256 encryption, MD5/SHA1 authentication, and Main/Aggressive negotiation modes.
Abundant Security Features
- Powerful Firewall: Advanced firewall policies protect your network and data
- Convenient VLAN Support: Create virtual network segments for enhanced security and simplified network management.
- DoS Defense: Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
- IP/MAC/URL Filtering: Forcefully prevent viruses and attacks from intruders.
- IP-MAC Binding: Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
- One-Click ALG Activation: One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec, and PPTP.
Specifications:
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 440 x 220 x 44 mm
- Management : Omada App Centralized Management Cloud Access Maintenance Time Setting Diagnostic Firmware Upgrade Factory Defaults/Reboot Backup&Restore System Log Remote Management Statistics Controller Settings SNMP Management Features Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration
- Security : SPI Firewall VPN Passthrough FTP/H.323/PPTP/SIP/IPsec ALG DoS Defence, Ping of Death Local Management Filtering WEB Group Filtering§ URL Filtering Web Security ARP Inspection Sending GARP Packets§ ARP Scanning IP-MAC Binding Attack Defense TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN Access Control Source/Destination IP Based Access Control
- Button(s) : Reset Button
- DHCP : DHCP Server/Client DHCP Address Reservation Multi-net DHCP Multi-IP Interfaces
- Dynamic DNS : Dyndns, No-IP, Peanuthull, Comexe
- . : NAT One-to-One NAT§ Multi-Net NAT Virtual Server Port Triggering§ NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP Session Limit IP-based Session Limit

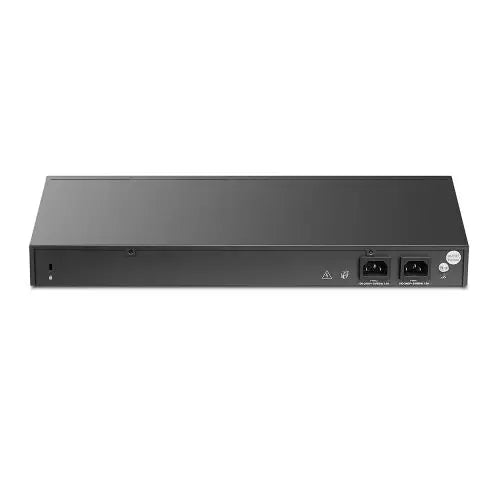

- Power Supply : Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
- Package Type : Retail
- Type : VPN Router
- VPN Support : Enterprise-Standard VPN Pass-through traffic & Multiple VPN protocols Including SSL, IPsec, PPTP, and L2TP in Client/Server mode Built-in VPN engine hardware Allow router to support and manage LAN-to-LAN/Client-to-LAN IPsec VPN connections Advanced DES/3DES/AES128/AES192/AES256 encryption MD5/SHA1 authentication Main/Aggressive negotiation modes
- Package Contents : Omada 10G Multi-WAN Security Gateway ER8411 Power Cord Rack-Mount Kit Quick Installation Guide
- Max Wired Transfer Rate : 10 Gbps

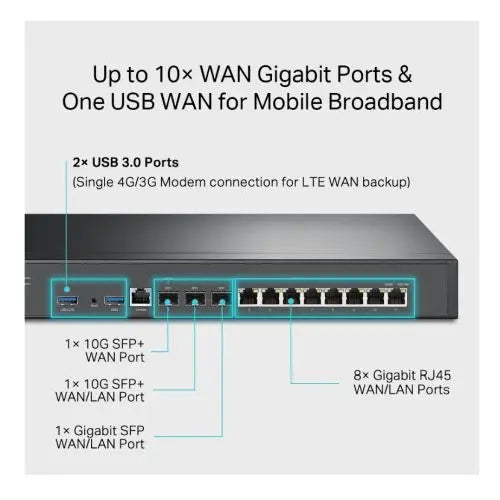

- Interface(s) : 2 x 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) 1 x 1GE SFP WAN/LAN Ports 8 x 1GE RJ45 WAN/LAN Ports 1 x RJ45 Console Ports 2 x USB Ports (Connecting 4G/3G Modem as WAN Backup)
- USB Application : Connecting 4G/3G Modem as WAN Backup
- Connectivity : Wired
- Additional Features : ACL IP/Port/Protocol/Domain Name Filtering Advanced Routing Static Routing Policy Routing Bandwidth Control IP/Port-based Bandwidth Control Guarantee & Limited Bandwidth Load Balance Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection
- Environment : Operating Temperature: 0–40°C (32–104°F) Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- IEEE Standards & Protocols : IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
- Package Weight : 4.3000 kg
