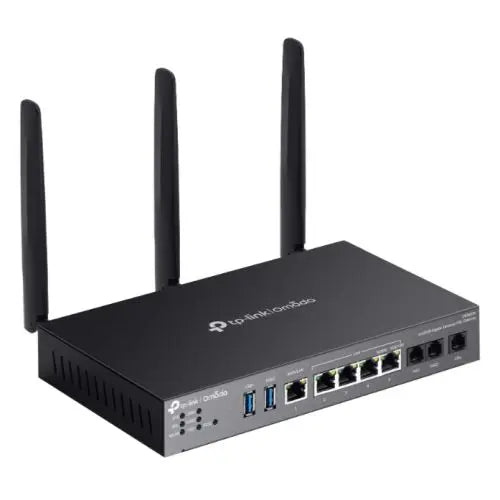

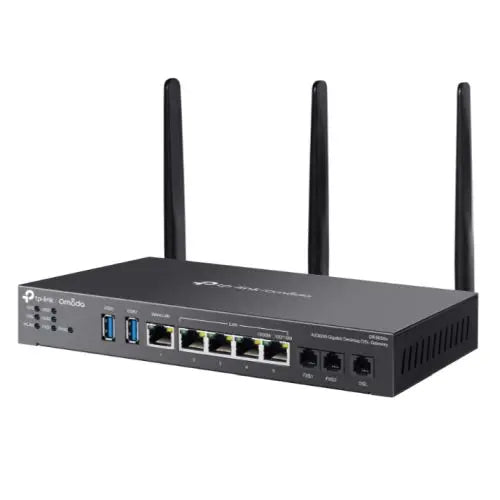

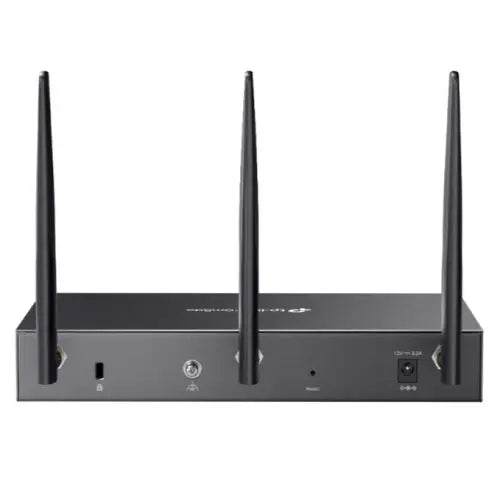

TP-LINK (DR3650v) Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway, Dual Band, VDSL2 35b, USB 3.0, VoIP Support, Centralized Management, Mesh Technology
Price:
$868.58
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
TP-LINK (DR3650v) Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway, Dual Band, VDSL2 35b, USB 3.0, VoIP Support, Centralized Management, Mesh Technology
Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
- AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- VDSL2 35b: Supports 350Mbps DSL Access
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility
- Centralized Cloud Management
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Load Balancing Between DSL and Ethernet WAN
- Omada Mesh Technology

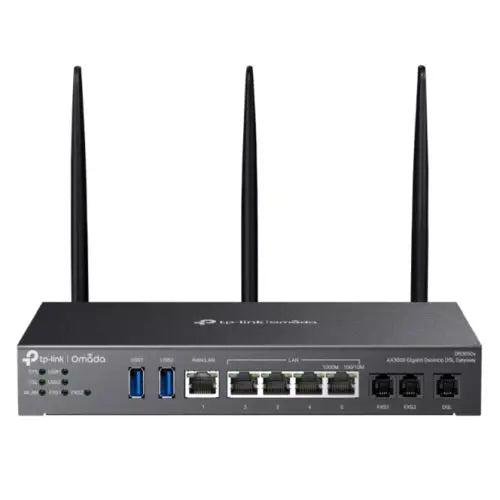

- 3 x RJ11 Ports (2 x FXS, 1 x DSL) & 5 x RJ45 Gigabit Ports & 2 x USB 3.0 Ports

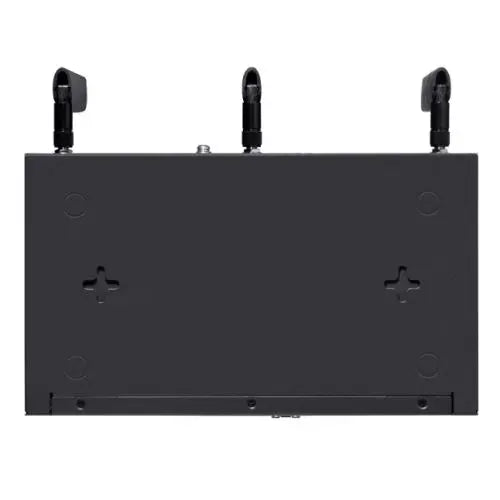

- Desktop/Wall Mounting
- 8.9 x 5.2 x 1.4 in (226 x 131.2 x 35 mm)
Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity
DR3650v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
HE 160
Double the data at peak transmission times on a single stream
OFDMA
Enables different devices to share one transmission stream, increasing efficiency
1024 QAM
25% more data encoded at one time
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
IPSec/PPTP/L2TP/GRE/WireGuard/ Open VPN/ SSL VPN easily builds secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Specifications:
- #Hide#Wireless Standard : Wi-Fi 6/6E (802.11ax)
- Max Single Band Wi-Fi Rate : 2402 Mbps
- Security : WiFi Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Filtering: Web Group Filtering URL Filtering Web Security ARP Inspection: Sending GARP Packets ARP Scanning IP-MAC Binding Attack Defense: TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN Access Control: Source/Destination IP Based Access Control
- Port/NAT Forwarding : 66 Byte Packet forwarding rate: 1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate: 81,274 pps / 91,275 pps
- Button(s) : Reset Button
- Power Supply : 12VDC / 3.3A Power Adapter Max Power Consumption: EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
- Wireless Features : Seamless Roaming Mesh (with EAP that supports Mesh) OFDMA Beamforming MU-MIMO
- VPN Support : SSL VPN: 50 Tunnels IPsec VPN: 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
- Package Contents : DR3650v Power Adapter Ethernet Cable Phone Cable Quick Installation Guide
- Wi-Fi Rating : AX3000
- Signal Rate : 5 GHz: 2402 Mbps 2.4 GHz: 574 Mbps
- Interface(s) : 3 x RJ11 Ports (2 x FXS, 1 x DSL) 5 x RJ45 Gigabit Ports (1 x WAN/LAN, 4 × LAN) 2 x USB 3.0
- Antenna(s) : 2.4 GHz: 2x 3 dBi dual-band detachable antennas 5 GHz: 3x 4.5 dBi dual-band detachable antennas
- Warranty : Limited Lifetime
- #Hide#Mesh Wi-Fi Support : Yes (Mesh Wi-Fi)1
- Dimensions : (WxDxH) 226 x 131 x 35 mm) (Antenna dimensions are not included)
- Management : Omada App Centralized Management Cloud Access Zero-Touch Provisioning Maintenance: Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support TR-069 (data models of TR-098 and TR181 are supported)
- DHCP : DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP
- . : Management Features: Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration
- Dynamic DNS : Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- Package Type : Retail
- Bands : Dual Band
- Type : VDSL2/ADSL2 Router
- Max Wired Transfer Rate : 10/100/1000 Mbps
- USB Application : Supports 4G/3G dongles
- Connectivity : Wireless
- Frequency : 2.4 GHz & 5 GHz
- Additional Features : Flash: 256 MB NAND DRAM: 512 MB DDR4 Desktop/Wall-mounting Guest Network
- Environment : Operating Temperature: 0C°~40°C (32°F ~104°F) Storage Temperature: -40°C to 70°C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing
- Package Weight : 1.7900 kg
