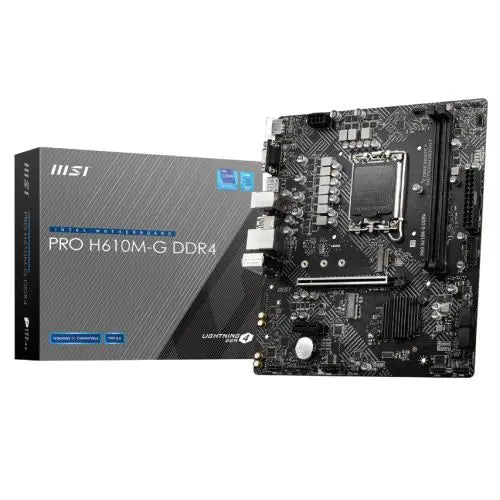

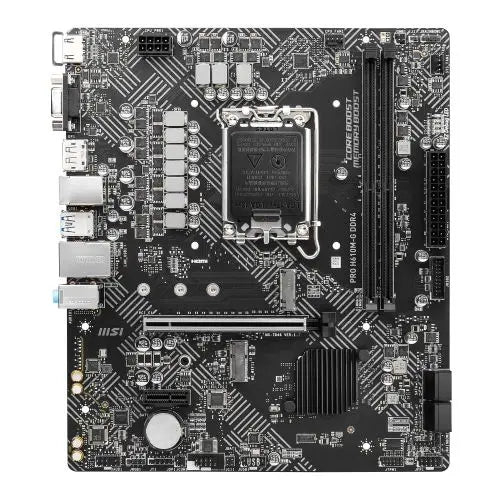

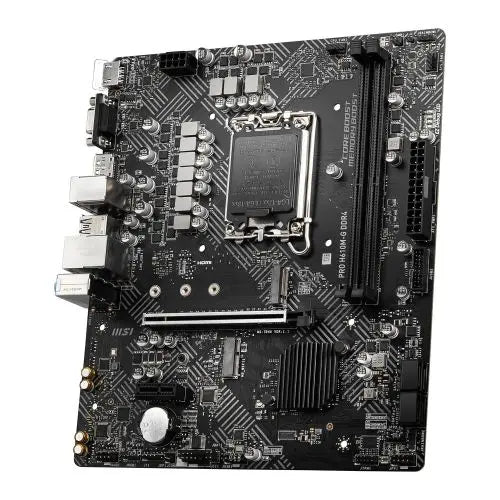

MSI PRO H610M-G DDR4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, 1x M.2
Price:
$226.59
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
MSI PRO H610M-G DDR4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, 1x M.2
PRO series helps users work smarter by delivering an efficient and productive experience.
Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Lightning Gen4 Solution
The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
PCI-E Steel Armor
Protecting VGA cards against bending and EMI.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel H610
- RAM Technology : DDR4 (Dual Channel) Supports non-ECC, un-buffered memory
- USB Ports Supported : Rear: 2 x USB 5Gbps Type-A 4 x USB 2.0 Front: 2 x USB 5Gbps Type-A 2 x USB 2.0
- RAM Slots : 2 x DIMM
- Maximum Memory : 64GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : Quick Installaion Guide M.2 Clip 2 x SATA Cables Product Registration Card I/O Shield Driver DVD MSI Case Badge
- #Hide#Max LAN Speed : GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR4
- Graphics Ports : 1 x VGA 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1
- RAM Speeds : Up to 3200 MHz
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 1 x Power (CPU_PWR) 1 x CPU Fan 1 x System Fan 1 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x TPM 1 x USB 2.0 1 x USB 5Gbps Type-A
- Storage : 4 x SATA III 1 x M.2 (2242/2260/2280) - PCIe 3.0 x4

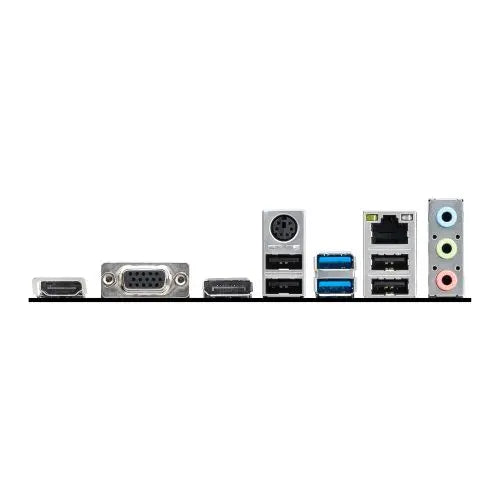

- Back Panel I/O Ports : 2 x USB 5Gbps Type-A 4 x USB 2.0 1 x DisplayPort 1.4 1 x HDMI 2.1 1 x VGA 1 x PS/2 Keyboard/Mouse Combo 1 x RJ-45 1 x Audio Line In 1 x Audio Line Out 1 x Microphone In
- LAN : GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : Intel 1700
