MSI MPG X870E CARBON WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G & 2.5G LAN, RGB, 4x M.2
Price:
$1,551.41
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
MSI MPG X870E CARBON WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G & 2.5G LAN, RGB, 4x M.2
MPG X870E CARBON WIFI employs a carbon black color scheme and stylish pattern over Mystic light RGB lighting to show a different identity.
It is also powerful inside by featuring 5G LAN, true Wi-Fi 7 solution, USB 40Gbps, Supplemental PCIe Power, and the latest EZ DIY designs, making this motherboard one of the best X870E ATX motherboards for Ryzen 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 18+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
MSI Performance Gaming
MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Premium Thermal Design
Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage performance.
Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
Dual LAN
Dual premium network solution for both Intranet and Internet, offering a smooth gaming experience for effective network connection
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high quality audio processor for the most immersive gaming experience
Specifications:
- CPU Support : Click here for CPU support
- Wireless : Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
- Chipset : AMD X870E
- RAM Technology : DDR5 (Dual Channel) Supports Non-ECC, Un-buffered memory Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports CUDIMM, Clock Driver bypass mode only
- USB Ports Supported : Rear: 2 x USB 40Gbps Type-C 2 x USB 10Gbps Type-C 9 x USB 10Gbps Type-A Front: 1 x USB 20Gbps Type-C 4 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- #Hide#Max LAN Speed : 5GB LAN
- #Hide#Wi-Fi : Yes (Wi-Fi)
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 2 x USB4 (40Gbps) support USB Type-C display outputs
- PCI/PCI Express : 2 x PCIe 5.0 x16 1 x PCIe 4.0 x16 *Specifications may vary between CPU types
- RAM Speeds : Up to 8400+(OC)
- #Hide#No. LAN Ports : 2 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1 and 10 for SATA storage devices Supports RAID 0, 1 and 10* for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series CPUs. *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series CPUs.
- . : 1 x RGB LED 4 x USB 2.0 4 x USB 5Gbps Type-A 1 x USB 20Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x Power (PCIE_PWR 8pin) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 5 x System Fan 1 x EZ Conn-header (JAF_2) 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Thermal Sensor 3 x Addressable V2 RGB LED
- Storage : 4 x SATA III 4 x M.2 Ryzen 9000 & 7000 Series CPUs: M.2_1 (2280/2260) - PCIe 5.0 x4 M.2_2 (2280/2260) - PCIe 5.0 x4 Ryzen 8000 Series CPUs: M.2_1 (2280/2260) - PCIe 4.0 x4 M.2_2 (2280/2260) - Not available Chipset: M.2_3 (22110/2280) - PCIe 4.0 x4 M.2_4 (2280/2260) - PCIe 4.0 x4

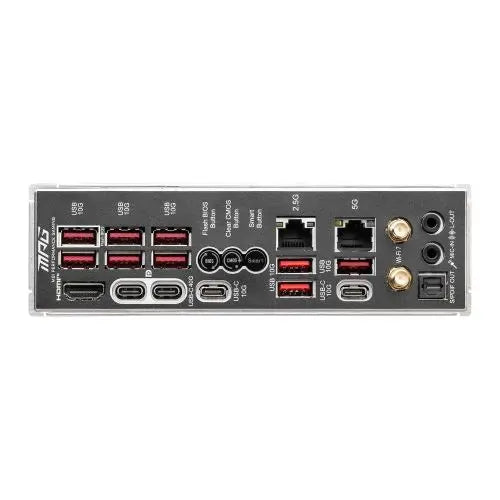

- Back Panel I/O Ports : 2 x USB 40Gbps Type-C 2 x USB 10Gbps Type-C 9 x USB 10Gbps Type-A Flash BIOS Button 1 x Clear CMOS Button 1 x Smart Button 1 x 2.5G LAN 1 x 5G LAN Audio Connectors 1 x HDMI Wi-Fi / Bluetooth 1 x Optical S/PDIF Out
- LAN : 5GB LAN & 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio
- Package Weight : To be confirmed
- Socket : AMD AM5
