MSI MPG B860I EDGE TI WIFI, Intel B860, 1851, Mini ITX, 2 DDR5, HDMI, TB4, Wi-Fi 7, 5G LAN, 2x M.2
Price:
$662.43
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
MSI MPG B860I EDGE TI WIFI, Intel B860, 1851, Mini ITX, 2 DDR5, HDMI, TB4, Wi-Fi 7, 5G LAN, 2x M.2

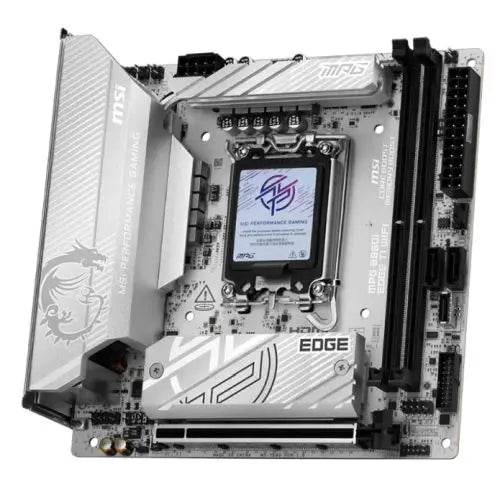

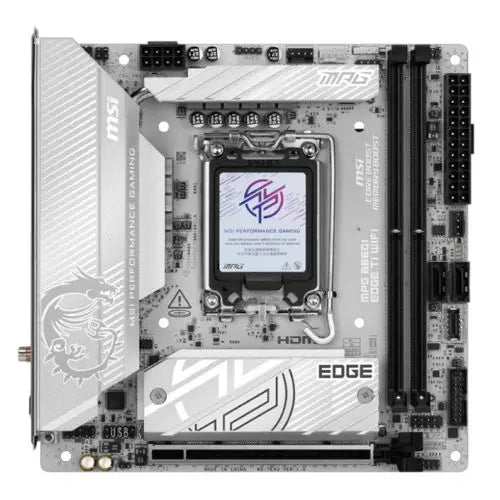

MPG B860I EDGE TI WIFI is a mini-ITX B860 motherboard with incredible power and expansion.
It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt™ 4, PCIe 5.0 connecitvity. It is definetly the best B860 mini-ITX motherboard for Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, up to 8600+ MT/s (OC)
- Ultra Performance: 8+1+1+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ Antenna, EZ Button and EZ Debug LED
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Premium Thermal Design
Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Thunderbolt™ 4 port
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Specifications:
- CPU Support : Click here for CPU support
- Wireless : Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
- Chipset : Intel B860
- RAM Technology : DDR5 (Dual Channel) Supports Non-ECC, Un-buffered memory Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports CUDIMM
- USB Ports Supported : Rear: 1 x Thunderbolt 4 (USB Type-C) 1 x USB 10Gbps Type-C 1 x USB 10Gbps Type- A 4 x USB 5Gbps Type-A Front: 1 x USB 10Gbps Type-C 2 x USB 5Gbps 2 x USB 2.0
- RAM Slots : 2 x DIMM
- Maximum Memory : 128GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Mini ITX

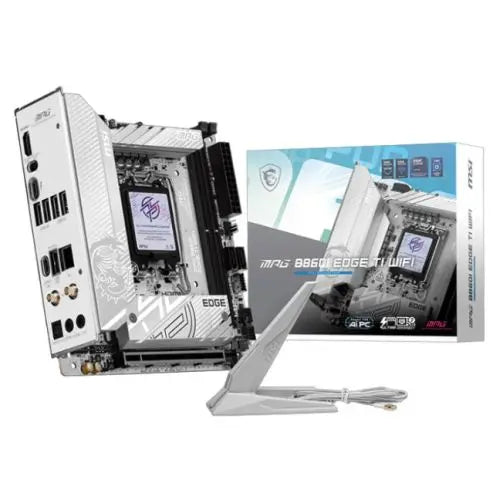

- Accessories : EU Regulatory Notice Quick Installation Guide Cable Stickers EZ Wi-Fi Antenna SATA Cable M.2 Screw ARGB Extension Cable EZ Front Panel Cable
- #Hide#Max LAN Speed : 5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs
- PCI/PCI Express : 1 x PCIe 5.0 x16
- RAM Speeds : Up to 8600MT/s (OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0 and RAID 1 for SATA storage devices
- . : 2 x USB 5Gbps Type-A 1 x USB 10Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 1 x Power (CPU_PWR) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 1 x System Fan 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Addressable V2 RGB LED 1 x RGB LED 1 x TPM pin TPM 2.0 2 x USB 2.0
- Storage : 2 x SATA III 2 x M.2 M.2_1 (2280) - PCIe 5.0 x4 M.2_2 (2280) - SATA & PCIe 4.0 x4

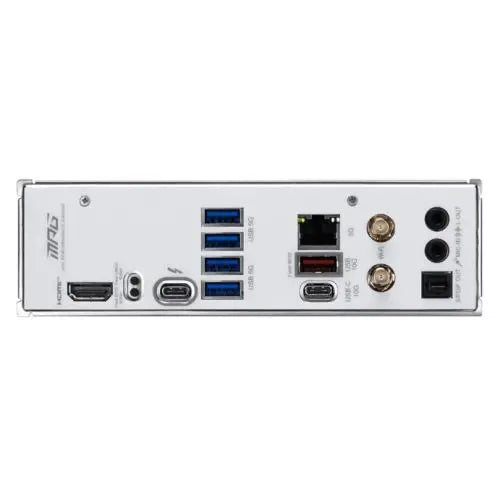

- Back Panel I/O Ports : 1 x Thunderbolt 4 (USB Type-C) 1 x USB 10Gbps Type-C 1 x USB 10Gbps Type- A 4 x USB 5Gbps Type-A 1 x HDMI 2.1 1 x RJ-45 1 x Audio Line Out 1 x Microphone In 1 x S/PDIF Optical Out 2 x SMA Antenna
- LAN : 5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : Intel 1851
