MSI MPG B550 GAMING PLUS, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, GB LAN, RGB, 2x M.2
Price:
$355.56
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description

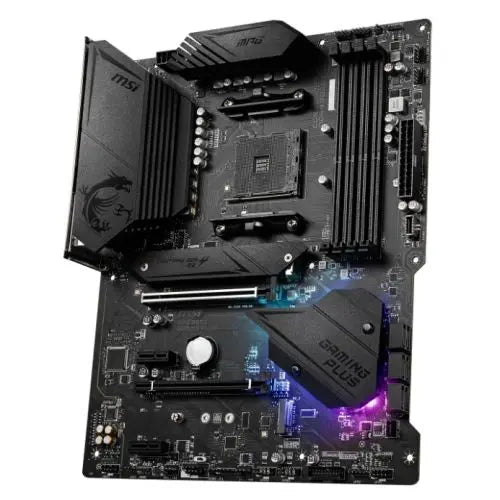

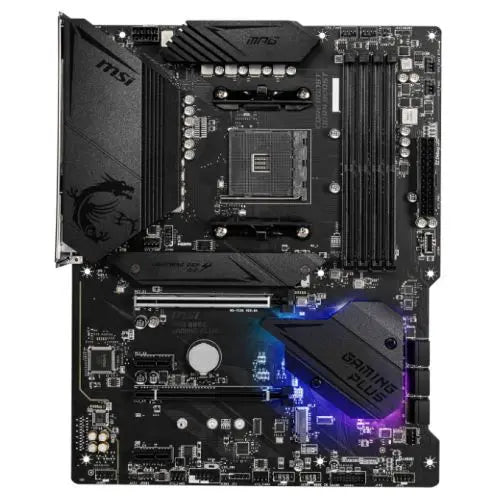

MSI MPG B550 GAMING PLUS, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, GB LAN, RGB, 2x M.2
The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization.
Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
- Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
- Audio Boost: Reward your ears with studio grade sound quality
Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation.
EZ LED Control
One button to control LED on/off easily.
Front Type-C USB 3.2 Gen 1 5Gbps
Compatible with the latest PC chassis and perfect for external drives and other mobile devices.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
Specifications:
- Storage : 6 x SATA III 2 x M.2 M.2_1 (2242/2260/2280/22110) - SATA & PCIe 4.0/3.0 x4 M.2_2 (2242/2260/2280) - PCIe 3.0 x4
- CPU Support : Click here for CPU support Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
- Wireless : -
- Chipset : AMD B550
- RAM Technology : DDR4 (Dual Channel) Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
- USB Ports Supported : Rear: 1 x USB 10Gbps Type-C 1 x USB 10Gbps 1 Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 Front: 1 x USB 5Gbps Type-C 2 x USB 5Gbps 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 128GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : User Manual Quick Installation Guide MSI Case Badge Product Registration Card MSI Product Catalog Case Screw Guide 2 x SATA Cables Promotion Card Driver DVD
- Multi-GPU Support : Supports 2-Way AMD CrossFire
- Warranty : 3 Years
- #Hide#DDR Type : DDR4
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0/3.0 x16 1 x PCIe 3.0 x16 (supports x4 speed) 2 x PCIe 3.0 x1
- RAM Speeds : Up to 4400MHz (OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1 and 10 for SATA storage devices Supports RAID 0 and 1 for M.2 NVMe storage devices
- . : 1 x Chassis Intrusion 1 x 4-pin RGB LED 2 x 3-pin RAINBOW LED 1 x TPM module 1 x Clear CMOS jumper
- Graphics : Integrated Graphics Processor Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x 24-pin ATX main 1 x 8-pin ATX 12V 6 x SATA 6Gb/s 2 x M.2 (M-Key) 1 x USB 3.2 Gen1 5Gbps Type-C 1 x USB 3.2 Gen1 5Gbps 2 x USB 2.0 1 x 4-pin CPU fan 1 x 4-pin water-pump fan 6 x 4-pin system fan 1 x Front panel audio 2 x System panel

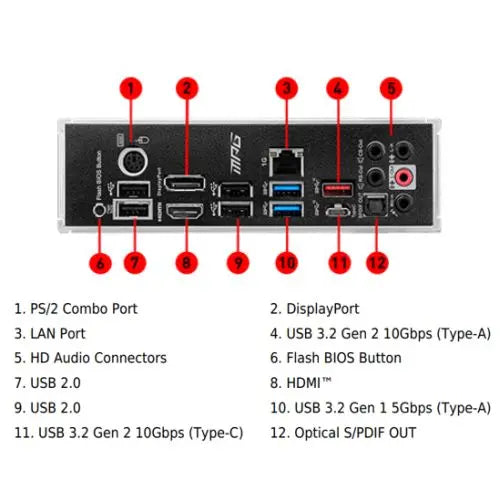

- Back Panel I/O Ports : 1 x USB 10Gbps Type-C 1 x USB 10Gbps 1 Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x PS/2 1 x RJ-45 1 x Audio Line In 3 x Audio Line Out 1 x Microphone In 1 x S/PDIF Optical Out
- LAN : GB LAN
- Additional Features : See Overview
- Audio : 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : AMD AM4
