MSI MAG X870E TOMAHAWK WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, 4x M.2
Price:
$1,045.92
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description

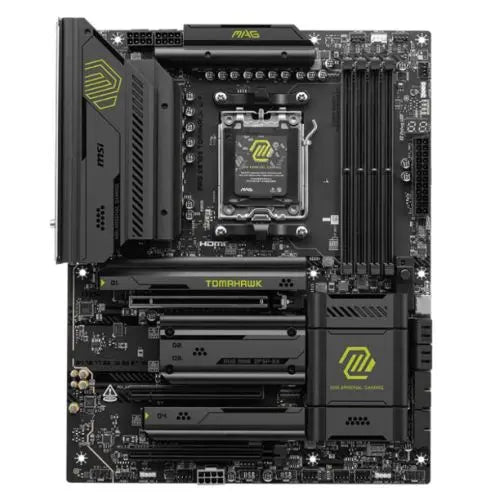

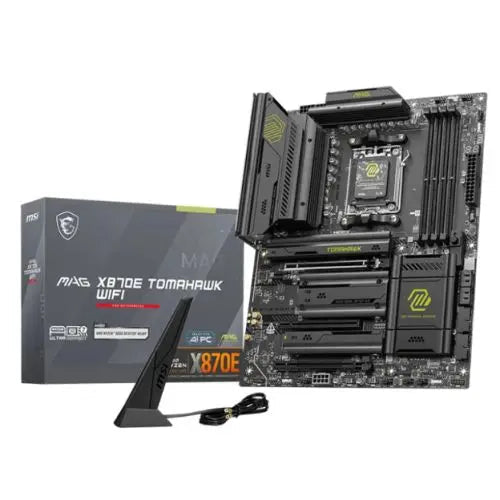

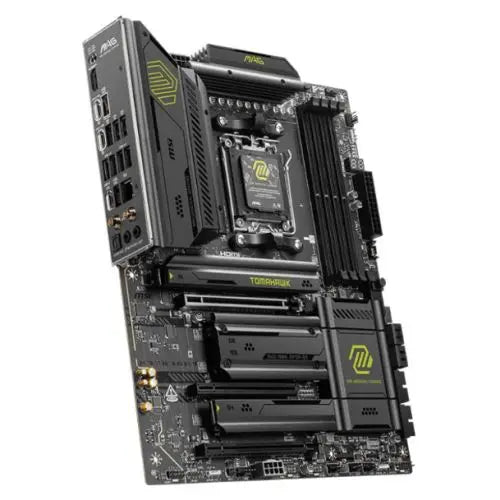

MSI MAG X870E TOMAHAWK WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, 4x M.2
MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
MAG - MSI Aresnal Gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. 5G Network Solution Featuring premium 5G LAN to deliver better network experience.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage performance.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Audio Boost 5
Isolated audio with a high quality audio processor for the most immersive gaming experience
Specifications:
- CPU Support : Click here for CPU support
- Wireless : Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
- Chipset : AMD X870E
- RAM Technology : DDR5 (Dual Channel) Supports Non-ECC, Un-buffered memory Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports CUDIMM, Clock Driver bypass mode only
- USB Ports Supported : Rear: 2 x USB 40Gbps Type-C 1 x USB 10Gbps Type-C 2 x USB 10Gbps Type-A 3 x USB 5Gbps Type-A 4 x USB 2.0 Front: 1 x USB 20Gbps Type-C 4 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : Quick Installation Guide EU Regulatory Notice Shout-Out Flyer 2 x SATA Cables EZ M.2 Clip II Remover M.2 Plate Screw USB Drive Cable Sticker EZ Wi-Fi Antenna 1 to 3 EZ Conn-Cable (V2) EZ Front Panel Cable
- #Hide#Max LAN Speed : 5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 2 x USB4 (40Gbps) support USB Type-C display outputs
- PCI/PCI Express : 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 *Specifications may vary between CPU types
- RAM Speeds : Up to 8200+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1 and 10 for SATA storage devices Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series CPUs. *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series CPUs
- . : 1 x TPM pin TPM 2.0 4 x USB 2.0 4 x USB 5Gbps Type-A 1 x USB 20Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x Power (PCIE_PWR 8pin) 1 x CPU Fan 1 x Combo Fan 6 x System Fan 1 x EZ Conn-header 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 3 x Addressable V2 RGB LED 1 x RGB LED
- Storage : 4 x SATA III 4 x M.2 Ryzen 9000 & 7000 Series CPUs: M.2_1 (22110/2280) - PCIe 5.0 x4 M.2_2 (2280/2260) - PCIe 5.0 x4 Ryzen 8000 Series CPUs: M.2_1 (22110/2280) - PCIe 4.0 x4 M.2_2 (2280/2260) - PCIe 4.0 x4* Chipset: M.2_3 (2280/2260) - PCIe 4.0 x4 M.2_4 (2280/2260) - PCIe 4.0 x4 *The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series CPUs

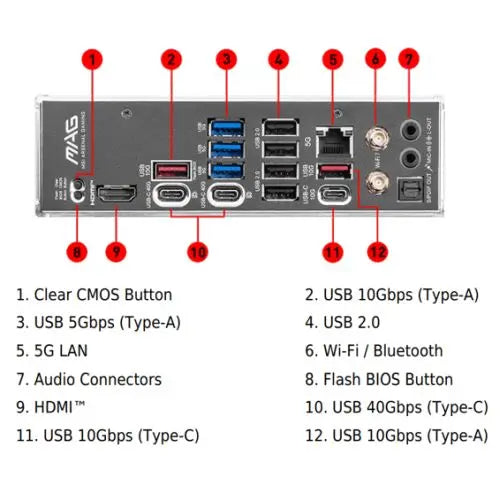

- Back Panel I/O Ports : 2 x USB 40Gbps Type-C 1 x USB 10Gbps Type-C 2 x USB 10Gbps Type-A 3 x USB 5Gbps Type-A 4 x USB 2.0 1 x HDMI 2.1 1 x RJ-45 1 x Audio Line Out 1 x Microphone In 1 x S/PDIF 2 x SMA Antenna
- LAN : 5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio
- Package Weight : To be confirmed
- Socket : AMD AM5
