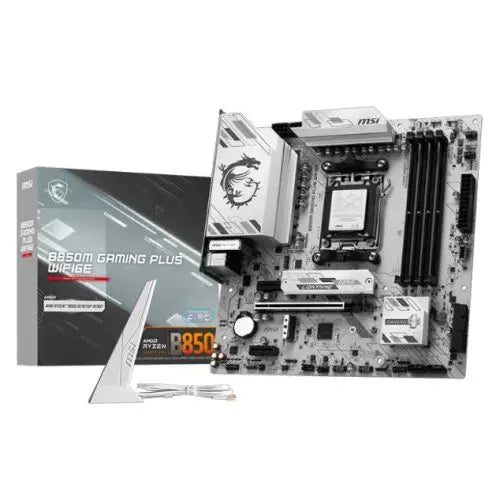

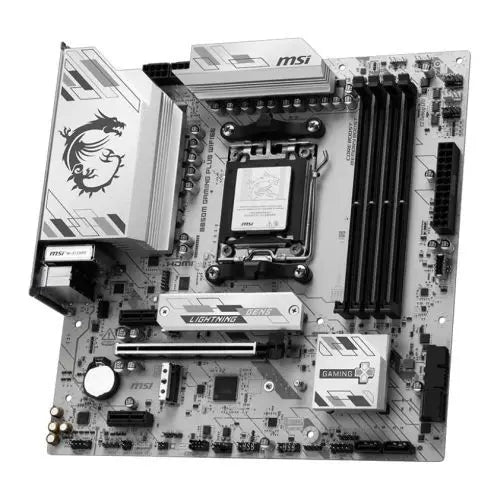

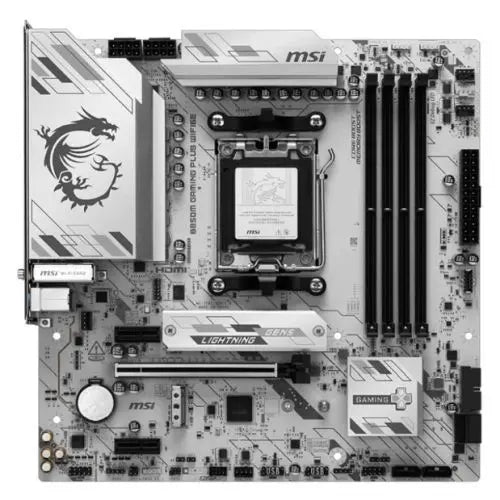

MSI B850M GAMING PLUS WIFI6E, AMD B850, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 2x M.2
Price:
$470.66
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
MSI B850M GAMING PLUS WIFI6E, AMD B850, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 2x M.2
The B850M GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience.
Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 10+2+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- High-speed Connectivity: 2.5G LAN with Wi-Fi 6E Solution - The premium solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Clip II, EZ-Conn Design and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
EZ Antenna
EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Specifications:
- CPU Support : Click here for CPU support
- Wireless : Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
- Chipset : AMD B850
- RAM Technology : DDR5 (Dual Channel) Supports Non-ECC, Un-buffered memory Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports CUDIMM, Clock Driver bypass mode only
- USB Ports Supported : Rear: 1 x USB 10Gbps Type-C 3 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A Front: 1 x USB 10Gbps Type-C 2 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : EZ Wi-Fi Antenna Cable Stickers Quick Installation Guide 1 to 2 EZ Conn-Cable (V1) SATA Cable EU Regulatory Notice EZ M.2 Clip II EZ M.2 Clip II Remover
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 *Specifications may vary between CPU types
- RAM Speeds : Up to 8200+MT/s (OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1 and 10 for SATA storage devices Supports RAID 0 and 1 for M.2 NVMe storage devices
- . : 1 x TPM pin TPM 2.0 4 x USB 2.0 2 x USB 5Gbps Type-A 1 x USB 10Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x CPU Fan 1 x Combo Fan 3 x System Fan 1 x EZ Conn-header 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Tuning Controller 3 x Addressable V2 RGB LED 1 x RGB LED
- Storage : 4 x SATA III 2 x M.2 Ryzen 9000 & 7000 Series CPUs: M.2_1 (2280/2260) - PCIe 5.0 x4 M.2_2 (2280/2260) - PCIe 4.0 x4 Ryzen 8000 Series CPUs: M.2_1 (2280/2260) - PCIe 4.0 x4 M.2_2 (2280/2260) - PCIe 4.0 x4/x2

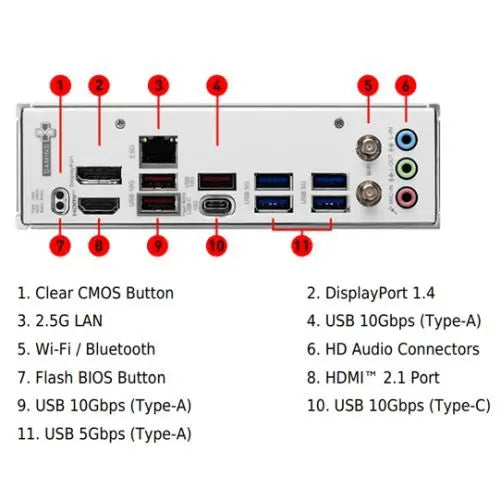

- Back Panel I/O Ports : 1 x USB 10Gbps Type-C 3 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 1 x DisplayPort 1.4 1 x HDMI 2.1 1 x RJ-45 1 x Audio Line In 1 x Audio Line Out 1 x Microphone In 2 x SMA Antenna
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : AMD AM5
