MSI B850 GAMING PLUS WIFI, AMD B850, AM5, ATX, 4 DDR5, DP, Wi-Fi 7, 5G LAN, 3x M.2
Price:
$645.00
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description

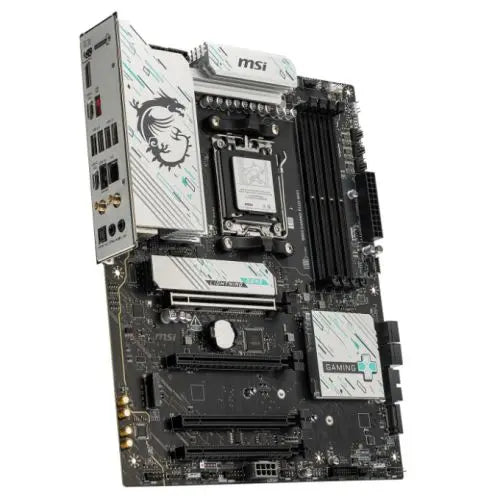

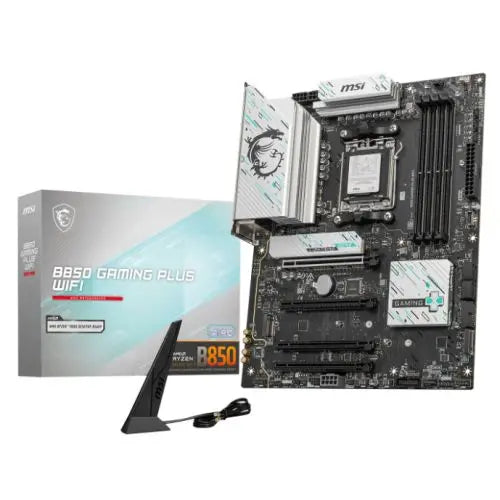

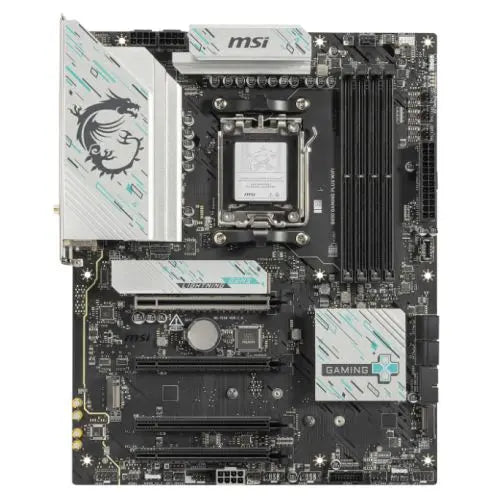

MSI B850 GAMING PLUS WIFI, AMD B850, AM5, ATX, 4 DDR5, DP, Wi-Fi 7, 5G LAN, 3x M.2
The B850 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience.
Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 5G LAN with Full-speed Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
12+2+1 DRPS Power Design
Unlock and maintain peak performance with the flagship VRM design featuring 12+2+1 digital power phases. Equipped with dual power connectors and a 60A Smart Power Stage, the B850 GAMING PLUS WIFI is fully prepared to handle the demands of high-end processors.
Optimised PCB
The PCB design has been optimised to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission.
Unleash World-Class DDR5 Performance
Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the B850 GAMING PLUS WIFI is primed to deliver world-class memory performance.
Frozr Cooling Design
- Extended HeatsinksThe Extended Heatsink increases the surface area for heat dissipation, allowing even high-end processors to operate at full speed.
- M.2 Shield Frozr - Achieve reliable operation and incredible performance with this strengthened M.2 thermal solution.
- Heavy Plated VRM Heatsink - The upper MOS is protected with the VRM heatsink for efficient heat dissipation.
- 7W/mK Thermal Pad - Premium 7W/mK MOSFET thermal pads and additional choke thermal pads guarantee all cores operate at peak performance.
- Enlarged Chipset Heatsink - The enlarged heatsink design minimises dust and noise while ensuring efficient heat dissipation.
DIY 2.0
Connect and synchronise with MSI coolers and cases using strategically placed pin-header locations, including a dedicated pump-fan header.
Triple M.2 Slots
MSI utilises high-speed M.2 slots with PCIe Gen 4 and Gen 5 support, enabling faster load times and efficient data transfers for SSDs.
WiFi 7
The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.
High-Bandwidth, Low Latency LAN
MSI's premium 5G network solution provides incredible transfer speeds for demanding users.
Specifications:
- CPU Support : Click here for CPU support
- Wireless : Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
- Chipset : AMD B850
- RAM Technology : DDR5 (Dual Channel) Supports Non-ECC, Un-buffered memory Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports CUDIMM, Clock Driver bypass mode only
- USB Ports Supported : Rear: 2 x USB 10Gbps Type-C 1 x USB 10Gbps Type-A 1 x USB 5Gbps Type-A 4 x USB 2.0 Front: 1 x USB 5Gbps Type-C 4 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : Quick Installation Guide EU Regulatory Notice EZ Wi-Fi Antenna SATA Cable 3 x EZ M.2 Clip II EZ M.2 Clip II Remover 1 to 2 EZ Conn-Cable (V1)
- #Hide#Max LAN Speed : 5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 *Specifications may vary between CPU types
- RAM Speeds : Up to 8200+MT/s (OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0 and 1 for SATA storage devices Supports RAID 0 and 1 for M.2 NVMe storage devices
- . : 3 x Addressable V2 RGB LED 1 x RGB LED 1 x TPM pin TPM 2.0 4 x USB 2.0 4 x USB 5Gbps Type-A 1 x USB 5Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x Power (PCIE_PWR 8pin) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 4 x System Fan 1 x EZ Conn-header 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Com Port 1 x Tuning Controller
- Storage : 4 x SATA III 3 x M.2 Ryzen 9000 & 7000 Series CPUs: M.2_1 (2280/2260) - PCIe 5.0 x4 M.2_2 (22110/2280) - PCIe 4.0 x4 Ryzen 8000 Series CPUs: M.2_1 (2280/2260) - PCIe 4.0 x4 M.2_2 (22110/2280) - PCIe 4.0 x4 Chipset: M.2_3 (2280/2260) - PCIe 4.0 x2

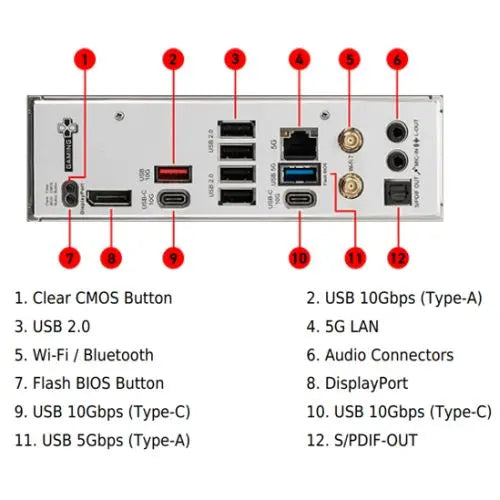

- Back Panel I/O Ports : 2 x USB 10Gbps Type-C 1 x USB 10Gbps Type-A 1 x USB 5Gbps Type-A 4 x USB 2.0 1 x DisplayPort 1.2 1 x RJ-45 1 x Audio Line Out 1 x Microphone In 1 x S/PDIF Optical Out 2 x SMA Antenna
- LAN : 5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : AMD AM5
