MSI B760 GAMING PLUS WIFI, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 2x M.2
B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
USB 3.2 Gen 2 Type-C
Synergize with a MSI motherboard through bridging with a USB 3.2 Gen 2 Type-C port for convenient access.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Specifications:
- RAM Technology : DDR5 (Dual Channel) Supports non-ECC, un-buffered memory Supports Intel XMP 3.0 OC
- USB Ports Supported : Rear: 1 x USB 10Gbps Type-C 2 x USB 10Gbps Type-A 4 x USB 2.0 Front: 1 x USB 5Gbps Type-C 2 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : Wi-Fi Antenna SATA Cables M.2 Screw/Standoff Set I/O Shield Quick Installation Guide EU Regulatory Notice
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 2 x PCIe 4.0 x16 3 x PCIe 3.0 x1
- RAM Speeds : Up to 6800+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1, 5 and 10 for SATA storage devices
- . : 1 x TPM 2.0 4 x USB 2.0 2 x USB 5Gbps Type-A 1 x USB 5Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- CPU Support : Click here for CPU support
- Wireless : Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA
- Chipset : Intel B760
- Internal I/O Connectors : 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x CPU Fan 1 x Pump Fan 5 x System Fan 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Printer Port 1 x Com Port 2 x Addressable V2 RGB LED 1 x RGB LED
- Storage : 4 x SATA III 2 x M.2 M.2_1 (22110/2280/2260/2242) - PCIe 4.0 x4 M.2_2 (2280/2260/2242) - SATA & PCIe 4.0 x4

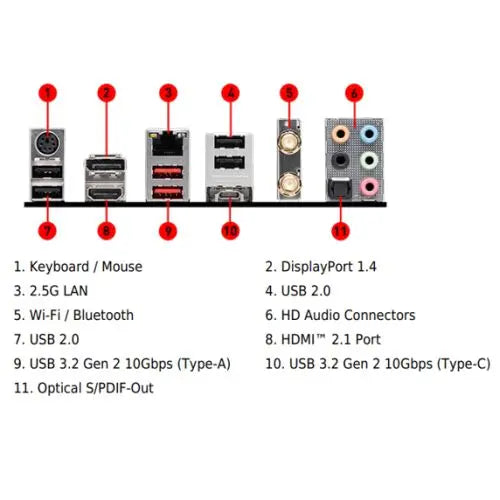

- Back Panel I/O Ports : 1 x USB 10Gbps Type-C 2 x USB 10Gbps Type-A 4 x USB 2.0 1 x DisplayPort 1.4 1 x HDMI 2.1 1 x PS/2 1 x RJ-45 1 x Audio Line In 3 x Audio Line Out 1 x Microphone In 1 x S/PDIF Optical Out 2 x SMA Antenna
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : Intel 1700
