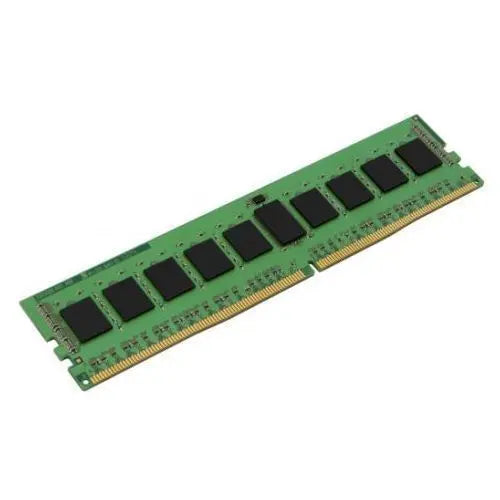

Kingston ValueRAM 16GB, DDR4, 3200MHz (PC4-25600), CL22, DIMM Memory
Price:
$391.37
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
Kingston ValueRAM 16GB, DDR4, 3200MHz (PC4-25600), CL22, DIMM Memory
ValueRAM's KVR32N22D8/32 is a 4G x 64-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Specifications:
- Timings : 22-22-22
- Speed : 3200 MHz
- Warranty : Lifetime
- Compliance : PC4-25600
- Size : 1 x 16GB
- DDR Type : DDR4
- #Hide#LED Lighting : No
- #Hide#Total Capacity : 16GB Total
- Heatsink : No
- Data Integrity Check : Non-ECC
- Package Type : Blister Pack
- Series : Kingston ValueRAM
- Additional Information : See Overview
- CAS Latency : CL22
- #Hide#Individual Module Size : 16GB
- Voltage : 1.2V
- Pins : 288-pin
- Package Weight : 0.0220 kg
