Asrock H610M-HDV/M.2+ D5, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, DP, PCIe4, 1x M.2
Price:
$186.18
The Honorable Veterans promise
- Orders processed within 1–3 business days
- Standard, Expedited and Overnight shipping across the United States
- Damaged or missing? Tell us within 7 days of the expected delivery date and we'll make it right.
Product details
Description
Asrock H610M-HDV/M.2+ D5, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, DP, PCIe4, 1x M.2
Snowy with Style
- Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
- 6+1+1 Power Phase
- Supports DDR5 5600MHz*
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 1 USB 3.2 Gen1 Type-C (Rear),
- 3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front),
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
6+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Polychrome RGB
This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects .
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Specifications:
- CPU Support : Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)
- Wireless : -
- Chipset : Intel H610
- RAM Technology : DDR5, Dual Channel Supports Intel Extreme Memory Profile (XMP) 3.0
- USB Ports Supported : Rear: 1 x USB 3.2 Gen1 Type-C 1 x USB 3.2 Gen1 Type-A 4 x x USB 2.0 Front: 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0
- RAM Slots : 2 x DIMM
- Maximum Memory : 128GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket
- #Hide#Max LAN Speed : GB LAN
- Warranty : 3 Year Replacement Warranty
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x VGA 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0 x16 (supports x16 mode) 1 x PCIe 3.0 x1
- RAM Speeds : Up to 5600MHz
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- Graphics : Integrated Graphics* *Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x Addressable LED 1 x CPU Fan 1 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Audio 1 x USB 2.0 1 x USB 3.2 Gen1
- Storage : 4 x SATA III 1 x M.2 (2242/2260/2280) - PCIe 3.0 x4

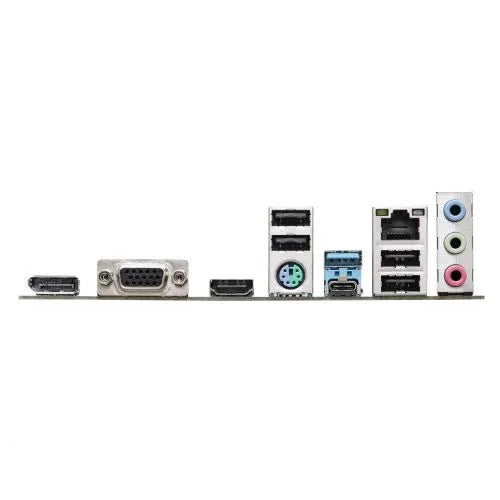

- Back Panel I/O Ports : 1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C 1 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks
- LAN : GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Package Weight : 0.7300 kg
- Socket : Intel 1700
